Calibrator: Hand held portable universal calibrator battery cum mains operated with Mv/Ma/RTD
source/Sink to calibrate & check transmitters/Indicator/ Thermo-couple/RTD are a
must for every sponge iron plant.
Radiation Pyrometer: Every sponge iron plant keep one hand held I.R. Pyrometer 0-500’C for monitoring
kiln outer shall temp. we supply “RAYTEK” and Theromotech temp. Gun

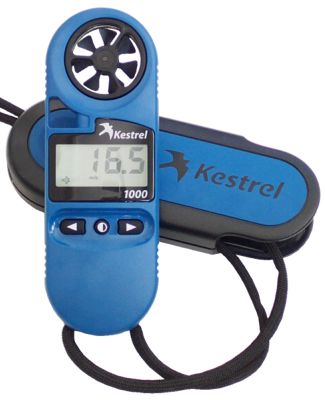

Anemometer: Range 0-30/45m/s are used to monitor pulverizes coal injection rate. Metal Vane fan
Microprocessor based Anemometer are also offered against specific enquiry.enquiry.
Digital Portable Thermo-Meter :Calibrated for 'K' type thermo-couple is very use ful for
sponge-iron units to check and cross check readings directly from
mounted thermocouple head of rotating kilns.
Testing And Measuring Instrument : We also supply multimeter / Tongtester / Meggar / Tacho meter
& Other testing instruments for maintainance & operation
of electrical systems.
Multimeters
Measure
Toung Instruments
Tecometer
Multimeters
Measure
Toung Instruments
Tecometer
Temperature Calibrators :
Sub-Zero Temperature
Dual (Hot & Cold) Temperature
Heavy Duty Low/Medium Temperature
Economy Models
High Temperature
High Temperature (Compact Version)
Very High Temperature
Sub-Zero Temperature
Dual (Hot & Cold) Temperature
Heavy Duty Low/Medium Temperature
Economy Models
High Temperature
High Temperature (Compact Version)
Very High Temperature

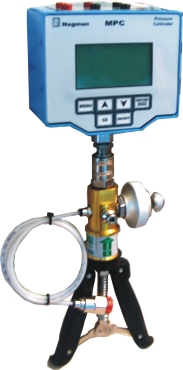

Pressure Calibrators :
Microprocessor based Smart Pressure
Advanced Microprocessor based Smart Pressure
Benchtop / Panel Mounted Microprocessor based Smart Pressure
Microprocessor based Smart Pressure
Advanced Microprocessor based Smart Pressure
Benchtop / Panel Mounted Microprocessor based Smart Pressure
Hand Pumps : Portable Handheld & Bench Top type Hand Pump models to cover Pneumatic (up to 40 bar) & Hydraulic (up to 1000 bar) ranges.
Dead Weight Testers :Pneumatic (up to 70 bars) Hydraulic (up to 700 bars) Ranges.
Accuracies – ±0.1 / – ±0.005 / – ±0.025 / – ±0.015% of Reading
Single / Dual Pistan Model.
Motorized & Portable Version available.
Accuracies – ±0.1 / – ±0.005 / – ±0.025 / – ±0.015% of Reading
Single / Dual Pistan Model.
Motorized & Portable Version available.
Calibration Test Benches : Calibration Test Benches For Pressure, Temperature, Electrical & Electronics Parameters.
HART Field Communicator
: The Rosemount HART Field Communicator is built on over ten years of experience with the 275 HART Communicator. It is a universal, user upgradeable, intrinsically safe, rugged and reliable portable communicator that will support all your fieldbus devices.
The HART Field Communicator runs on Windows CE, a robust, real-time, operating system. The display uses transflective technology, making it easy to read in both bright sunlight and in normal lighting. It also includes a multi-level backlight, allowing the display to be viewed in those areas of your plant with dim light. The touch sensitive display and large physical navigation buttons provide for efficient use both on the bench and in the field.
Rosemount HART Features:
The HART Field Communicator runs on Windows CE, a robust, real-time, operating system. The display uses transflective technology, making it easy to read in both bright sunlight and in normal lighting. It also includes a multi-level backlight, allowing the display to be viewed in those areas of your plant with dim light. The touch sensitive display and large physical navigation buttons provide for efficient use both on the bench and in the field.
Rosemount HART Features:
- Universal HART ® andFoundation TM fieldbus
- Intrinsically safe
- Rugged and reliable
- Interfaces with AMS Suite: Intelligent Device Manager
Processor and Memory |
|
| Microprocessor | 80 MHz Hitachi® SH3 |
| Memory Internal Flash | 32 MB |
| System Card | 128 MB or higher secure digital card |
| RAM | 32 MB |
| Expansion Module | 32 MB or higher secure digital card |
| Connection | |
| Battery Charger | Mini DIN 4-pin jack |
| HART and Fieldbus | Three 4mm banana plugs (one commonto HART and Foundation fieldbus) |
| IrDAPort | IrDA (Infrared Data Access) port supporting up to 115 Kbps |
| ±15 degrees recommended maximum angle from center line | |
| Approximately 12 (30 cm)recommended maximum distance | |
