| Temperature Sensor are the eyes of Process Control Instrumentation Systems, however sophistication or modern, cannot Work accurately and reliably without proper sensing system. Thermotech Specializes in manufacturing in Resistance Temperature Detector (RTDs) Thermocouples, Thermowells, compensation Cables and allied accessories. Beside, we have capabilities to fulfill almost any custom design requirement in this area . | |||
 |
|
||
| HIGH TEMPERATURE CERAMIC SHEATED THERMOCOUPLE | A variety of Pt 100, Pt200, Pt500, Pt1000 & Cu53 are avaibable in various constructions. Designed in accordance, with DIN 43760. IEC 751 BS 1904 class in 2,3 or 4 wirs, single or duplex as per application. Temperature Range :- -200 to +600 C |
||
|
|
|||
HEAVY DUTY METAL SHEATHED THERMOCOUPLE |
RTDs with fixed or adjustable fittings |
||
 |
|
||
| HEAVY DUTY THERMOCOUPLE " L" TYPE | TEFLON COATED | ||
 |
Special teflon coating allows to use in corrosive acid & alkalis. Teflon Coating : 0.6 mm Thick.
|
||
| MINERAL INSULATED METAL SHEATHED THERMOCOUPLE | |||
 |
|||
| WASHER THERMOCOUPLE / BAYONET THERMOCOUPLE | MINERAL INSULATED RTDs | ||
  |
Sensors Insulated with Compacted Magnesium Oxide enclosed in metal sheath. Flexible : available in 50 Mtrs. Length. Compact with Mechanical strength. Vibration Proof, accurate & stable. |
||
| QUICK DISCONNECT THERMOCOUPLE |  |
||
 |
|||
 |
|||

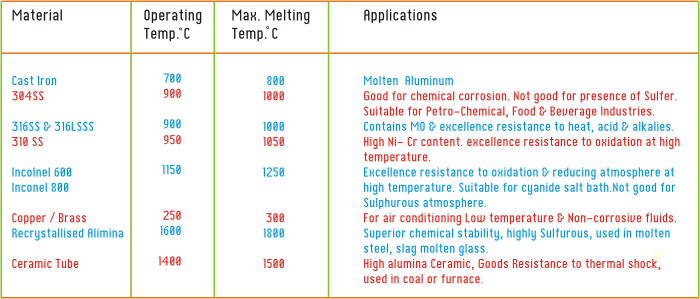

Thermowell are offen used in the industries to protect the temperature element from adverse conditions like high pressure, corroision abrasion etc.Thermowell also allows online replacement of temperature element. We at “ Thermotech “ offer thermowells of different M.O.C. Wiz Monel, Nickel, Tantalum, Titanium, Hastalloy X, Zirconium, SIC, Cast Iron, Black Steel, Ceramic, Tungsten Carbide, Wear Resistance graded casting of Cr / Ni/ Wolfram/ Co & also coated Thermowell of PTFE, ZiO2, Al2O3 Glass etc. We also cater base metal Thermowell with nobel metal sleave for protection againsts corrosion . Hard faced Thermowell for protection against abrasion / erosion. |
|||
Fast response stepped T/W |
Sintered Tungsten Carbide Coated T/W |
Tapered T/W |
|
Flanged T/W |
Ceremic T/W |
Teflon Coated T/W |
|
 |
|||
 |
|||
 |
|||
